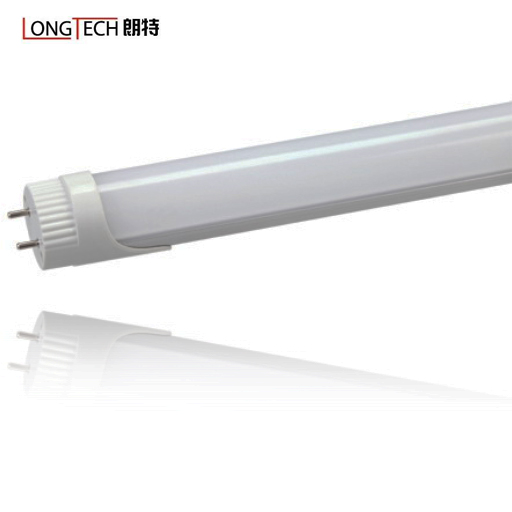

Product Name:   led tube light T8 1.5m 24W

TÜVCERoHS marked led tube lgith t5 8 10 for train, bus, station, office, factory, subway application

We meet standards for LED tube as follows:

-          IEC/EN 60598-1 (luminaries);

-          IEC/EN 61195 (double-cap fluorescent lamps);

-          IEC/EN 62031 (LED modules);

-          IEC/EN 60061 (lamp caps);

-          IEC/EN 62471 and IECTR 62471-2 (photo-biological safety);

-          IEC/EN 61347-2-13 (LED driver);

With extra advantages as:

1. Swivel G13 base to meet different application of light fixtures for different lighting angles;

2. Isolated Driver for safety purpose with TÜV standard;

3. One side input;

4. Easy maintenance - drivers can be easily picked out if drivers broken.

Product Name		TUV Certified TUBE
Product Model		LT-T8-1500D-2B360
Optical Parameters		Electrical Parameters
LED Chip Brand	Epistar	Input Voltage	100V-240VAC
LED Chip Type	SMD3528	Power Frequency	50/60HZ
LED Chip Quantity	360PCS	Output Voltage	45VDC
Color temperature	3000-7000K	LED Driver	Isolated driver
Fixture Efficiency	≥90%	Total Power	24W
Light Efficiency	≥85lm/W	LED Power Dissipation	20.7W
Luminous Flux	2160-2520LM	Power Efficiency	86%
Ra	≥75	Power Factor	≥0.9
Beam Angle	120°	THD	≤15%
Others
Heat Sink Surface Temperature	50??/td>	Lifespan	≥50000 Hrs
Luminaire Base Temperature	53??/td>	Fixture Material	Aluminum Alloy+PC
Working Temperature	–25??45??/td>	Net Weight	420g
Working Humidity	15%??0%RH	Connector Type	G13
Storing Temperature	–30??65??/td>	Size	??6*1511
Fluorescent Replacment	60W	IP Level	IP50
Package	Product Quantity		30PCS
	GW		12.8kg
	Size (mm)		1540*268*206
If you need more infomation of TUV TUBE,please email to us at: led@ledlongtech.com

Langte led light classification:

1. Infrared induction led light tube, radar induction led light tube, voice control led light tube Light induction led light tube (exclusive) - used in garage, intelligent control. "The car is lit and the car is half bright." 85% energy saving, in which the light-sensitive led light tube is exclusively developed, automatically adjusts the light, automatically fills the light and reduces the light.

2. Waterproof led tube - used in cold storage, refrigerator, freezer

3. Dimming led tube - conference room, special scene

4. Low voltage 24vled lamp, including 12v, 36v, 48v, 60v, 110v - used in machines, instruments, cars

5. Plant growth led tube, simulating sunlight, full spectrum, a wider range of applications. - used in agriculture to promote rapid growth of crops

6. Compatible with ballast led lamp (no need to change the line) - artificial too expensive, direct replacement. Suitable for European OSRAM, Philips, Japan, US electronic ballasts

7. Emergency led light tube - used for emergency use in power outage.

8. All-plastic tube led tube - heat-dissipating plastic, low price, quality guaranteed

9. Advanced LED tube - high standard, electromagnetic compatibility
