Features:
a¡ª Energy saving 70% more than conventional fluorescent tube.
a¡ª Solid lighting source, no UV,no infrared ray,no mercury。
a¡ª CRI>80;Initial luminous efficiency>100lm/w;lumens decay< 30% after 50,000h
a¡ª Working temperature: -20a„ƒï½ž40a„ƒ
a¡ª Constant current led driver, no glare, start without any delay。
a¡ª 50000h long life span .
a¡ª Controlled by intelligent IC.when no electricity,emergency tube will work automatically;when with power restoration,the battery with be charged automatically.there is protection circuit of over-charge and over-discharge.
a¡ª Use high quality nickel-cadmium battery or NI-MH battery which can be circular 500 times.
a¡ª The lamp can be controlled by the switch when the power supply work normally,the battery is in charge;when the power supply is off,the battery is into operation,then the lamp begin work.all the battery and the inverter can be fixed in the holder.
Dimension:
Tube Properties:
LED/QT'Y:SMD3528/280PCS
Type of cover:clean, frost, striped.
|
Parameter |
Value |
Parameter |
Value |
|
Body Materials |
AL+PC |
Emergency Time | >90min |
| CRI | >80 | Emergency Conversion time | <1S |
| CCT | 2700～6500K |
Charge time |
24H |
| Input Voltage |
AC 85～265V 50/60 HZ |
Battery Specification |
nickel-metal hydride battery DC12V 2.5AH |
| Input Power |
18W |
Inverter Output Voltage |
DC180-230V |
| Power Factor | ≥0.9 | Battery Max. External Size |
300*65*35mm |
| Luminous Flux | 1789LM | Inverter Max. External Size |
225*42*35mm |
| Luminous Efficiency |
≥90lm/W |
Working Temperature |
-20～40a„ƒ |
| Typical Efficiency(η) |
≥0.88 |
Woring Humidity | 10%～90%RH |

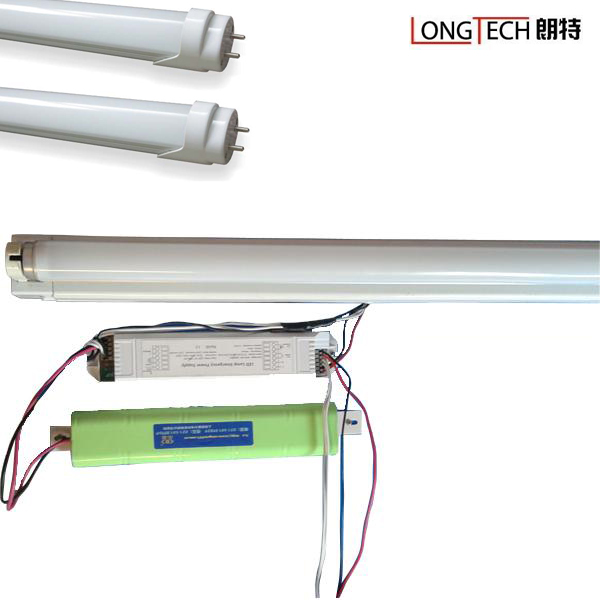

inverter and battery can be installed into the lamp fixture.
