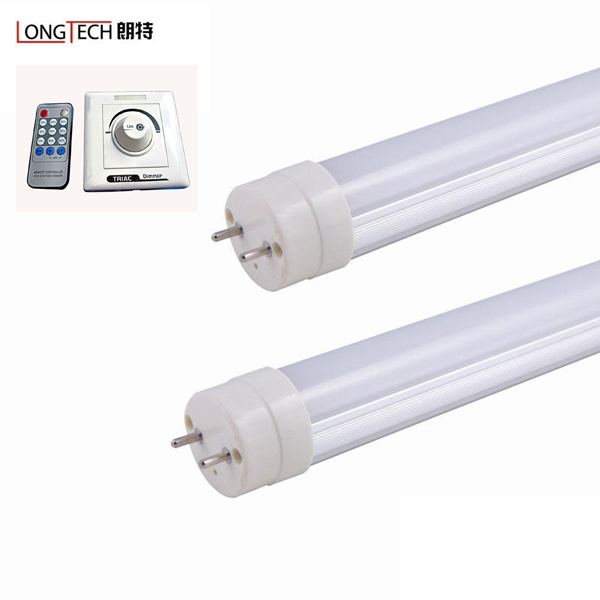

     Product Name:   Dimmable led tube light t10 4ft 20w SMD3528

led tube light t5\t8\t10 SMD3014\3528\5050 led chips IR&triac dimmer 0-100% no flickering



 Aluminum heat sink, No UV, IR or RF interference, Patented heat sink and optical diffuser, longer life than incandescent & fluorescent tube. No ballast required, universal voltage and constant current design, solid state, high shock & vibration resistant, Mercury free, 66%+savings in energy consumption, quiet, no noise, no flickering.The products are in accordance with CE, RoHS, UL and FCC testing standards.
 Color Temperature: Warm White:2600-3700K
                              Natural White:4000-4800k
                              Daylight White:5000-6500k
                              COOL White:6500-7500k

triac dimmer 0-100% led tube light SMD3014 3528 5050 led chips Features:
1.   IR&Triac dimmer, 0-100% dimmable.
2.   Aluminum heat sink.
3.   600/900/1200/1500/1800/2400mm is available.
4.   Replace T8/T10/T12 fluorescent lamps.
5.   Low lumen decline, “Zero” after 3000 hours.

Description??/span>
SMD LED Tubes, led tube light :
 Type No.
Length
Dia.
LED Qty
Watt
LED Type
Lumen
LT-T10-8W
600mm
30mm
108pcs
8W
SMD 3528
800 lm±10%
LT-T10-12W
900mm
30mm
180pcs
12W
SMD 3528
1200 lm±10%
LT-T10-20W
1200mm
30mm
324pcs
20W
SMD 3528
2000 lm±10%
LT-T10-24W
1500mm
30mm
360pcs
24W
SMD 3528
2400 lm±10%
LT-T10-28W
1800mm
30mm
432pcs
28W
SMD 3528
2800 lm±10%
LT-T10-36W
2400mm
30mm
576pcs
36W
SMD 3528
3600 lm±10%













Electrical Parameters:
Input Voltage: 100-277VAC
Frequency: 50/60Hz
PF: >0.95

Optical Parameters:
Luminaire Efficiency??/span>90%
LED Efficiency??/span>100lm/W
Color Temperature: Warm White, Natural White, Day White, Cool White

Other Parameters??/span>
Product Patents??/span>Yes
Operating Temperature??/span>-20-50??/span>
Storage Temperature???-20-50??/span>
Appearance??/span>Frosted
Beam angle: 120/160/200 degree
Main Material??/span>Aluminium Alloy + PC cover(clear/frosted/stripe)
End cap: G13, plastic or metal, can single end power on, no electric shock
IP Rank??/span>IP40
CRI: 80Ra
Life Span??/span>>50,000hours

Certifications??/span>
CE,RoHs,FCC

Lux Report (Pure White)

Type No.
Height: 1m
Height: 2m
Height: 3m
LT-T10-8W
138±10Lux
50±10Lux
35±10Lux
LT-T10-20W
257±20Lux
90±20Lux
48±20Lux
LT-T10-24W
273±20Lux
102±20Lux
55±20Lux
LT-T10-36W
455±20Lux
195±20Lux
110±20Lux
led tube light

Application: T5, T8 and T10 for more optional and are used in residential, hall, bar, hotel, restaurant, exhibition hall, parking lot, Houses, offices, meetingrooms, schools, factories, hospitals, workshops, storages etc.
